Foam Mat Cutting, Shaping & Finishing Process
NEEU converts foamed sheets and rolls into stable mat dimensions, custom shapes, and ready-for-surface-treatment parts through splitting, straight cutting, bevel cutting, die cutting, trimming, and finishing checks.
420+
China factory employees
50,999sqm
China’s production area
200+
Vietnam factory workers
100%
Finished mat inspection

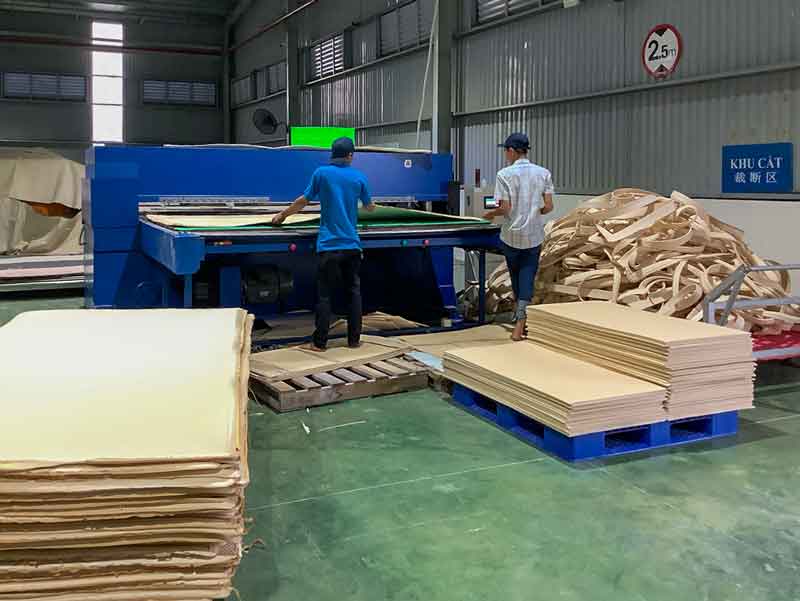

What Is Cutting, Shaping & Finishing?
Cutting, shaping, and finishing is the production stage where foamed materials are converted into specific mat sizes, shapes, and structures. Depending on the product type, this stage may include sheet cutting, die cutting, edge trimming, profile shaping, fold-line preparation, or basic finishing before the next process.
This step helps transform foamed material into a more defined product form, ready for surface treatment, lamination, printing, packaging, or further customization.
Precision Cutting – The Difference Between a Professional Mat and a Poor Fit
After foaming, the raw sheet or roll must be converted into final dimensions, shapes, and edge profiles. Inaccurate cutting leads to:
- nterlocking mats that don’t fit together – gaps or forced insertion.
- Yoga mats with uneven edges or inconsistent width.
- Roll mats that are difficult to install due to wavy edges.
- Play mats with sharp corners pose safety risks.
NEEU‘s cutting, shaping, and finishing station eliminates these defects through high‑precision tooling, automated CNC systems, and 100% dimensional inspection.
Need custom die‑cut foam shapes for your brand?
Our cutting engineers can advise on tooling and tolerances.Core Process Flow
From Foam Sheet to Finished Mat Shape
The exact route depends on material, product structure, thickness, shape and order requirements. NEEU combines machine cutting, die tooling and manual finishing checks to control batch consistency.
Material Preparation
Foamed sheets, rolls or laminated materials are released to cutting after basic appearance, thickness and batch checks.
Splitting and Slicing
Foam blocks or thick sheets can be split into target thickness ranges for yoga mats, exercise mats and other foam products.
Straight or Bevel Cutting
Materials are cut to required length, width, edge angle and panel format based on approved product specifications.
Die Cutting and Shaping
Custom dies create interlocking teeth, holes, handle openings, rounded corners and special shapes for OEM or private label orders.
Trimming and Finishing
Edges, corners, loose scraps and visible issues are checked before the mat enters surface treatment, lamination or final packaging.
Cutting & Shaping Methods by Product Type – Precision Tailored to Every Material
The cutting and shaping methods for foam mats vary depending on material, geometry, and production volume. EVA interlocking tiles require precise die-cutting for seamless edges, while XPE play mats require dust-free rotary or laser cutting for safe edges. PVC rolls use continuous slitting and cross-cutting for efficiency. TPE yoga mats benefit from press-cutting with corner rounding and logo embossing in a single stroke. Below, we outline the processes, equipment, and advantages for each type, showcasing how NEEU meets European and U.S. standards for precision, speed, and finish.
Edges, corners, loose scraps and visible issues are checked before the mat enters surface treatment, lamination or final packaging.
Splitting, straight cutting and trimming support stable thickness, rectangular sizing and clean edges.
Panel sizing, edge trimming and fold-line preparation support consistent folding structure and appearance.
Roll materials may require slitting, trimming, and length control before packing or further surface processing.
Shape accuracy, clean corners, and smooth edges help reduce assembly issues and visible retail defects.
Special outlines, holes, handles, curves and branded shapes can be developed through custom tooling.

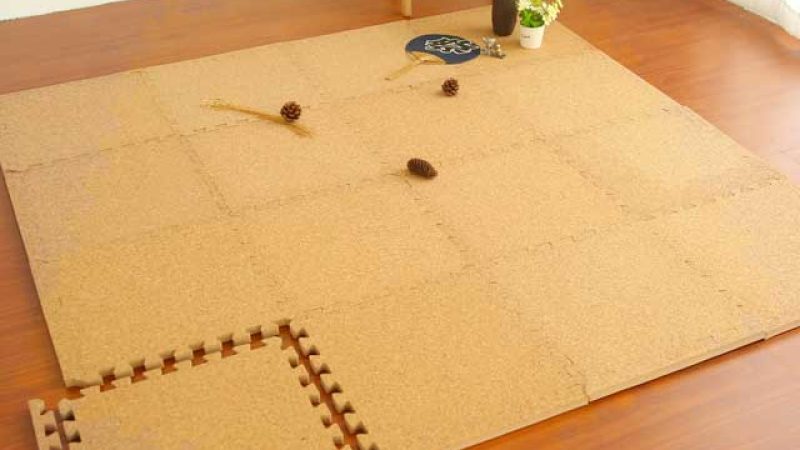

EVA Interlocking Mats– High‑Precision Die Cutting for Puzzle Edges

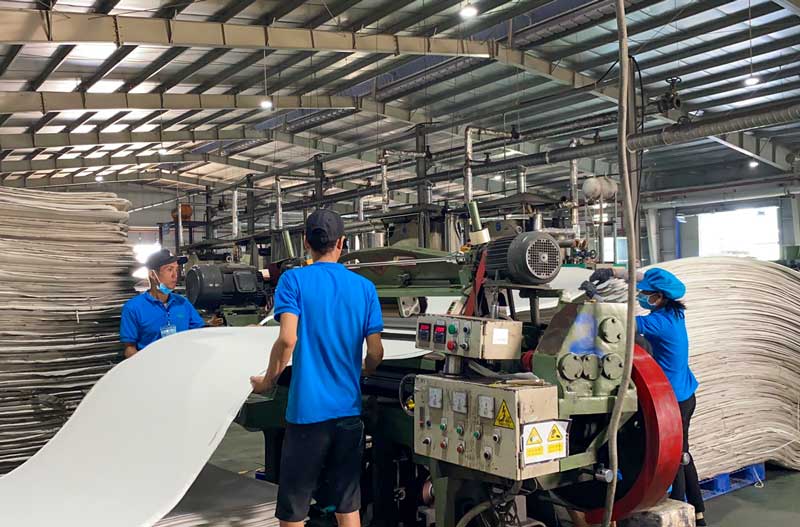

- Process flow: Thick EVA foam sheets are first sliced into the required thickness using a vertical slicing machine (standard thicknesses include 12mm, 25mm, or a range of 8–25mm). The sliced sheets are then fed into a hydraulic cutting machine (press) equipped with a high-precision interlocking-puzzle die to punch out individual pieces with interlocking teeth in a single operation.

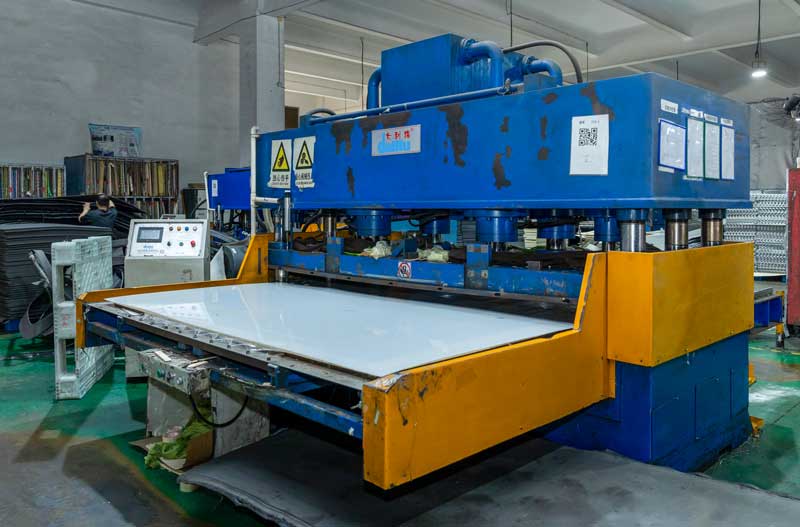

- Core equipment: Vertical slitting machine (horizontal slicing), hydraulic cutting machine (100–200 ton capacity),

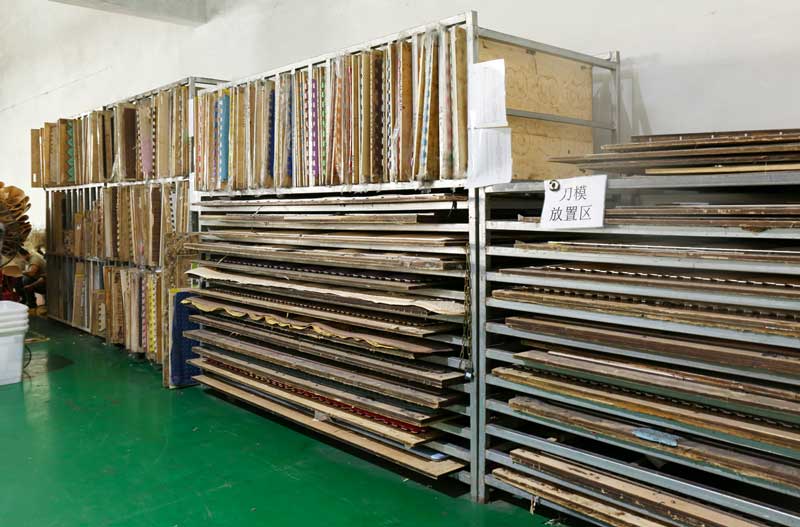

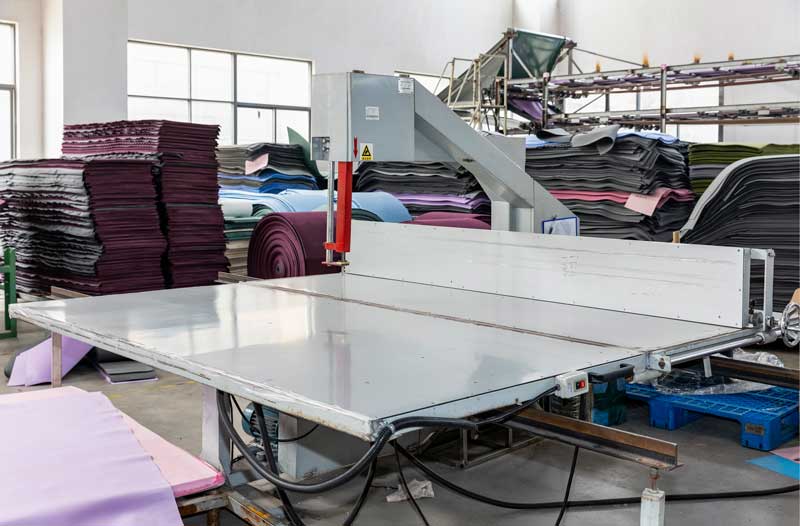

Jigsaw puzzle molds (cutting dies)，Straight-cut machine - Key Values: Tooth-profile clearance is ≤0.3 mm, with multi-piece assembly for seamless joints. Rapid mold changes take 15–20 minutes, accommodating varying specifications, while punching speed ranges from 800 to 1,200 pieces per hour with high material utilization.

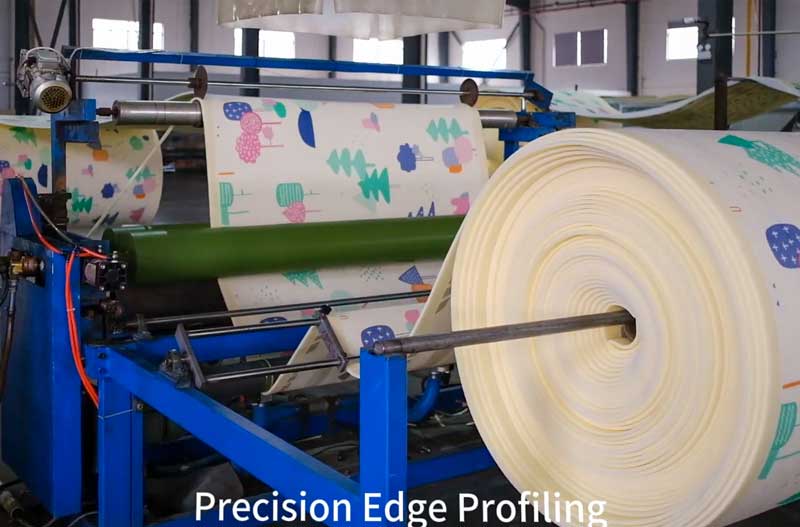

XPE Play Mats – Rotary Die Cutting & Laser Cutting for Safe, Dust‑Free Edges
- Process flow: Standard servo-controlled cutting machines trim laminated XPE rolls to client-specified widths (1000-2000mm ±1mm tolerance) using self-sharpening blades for smooth edges that meet EN71-1 safety standards. Automated width adjustments via PLC programming allow quick format changes. For the foldable children’s mat, a hydraulic press applies controlled pressure to imprint fold lines, creating durable “living hinges” without cutting the material.

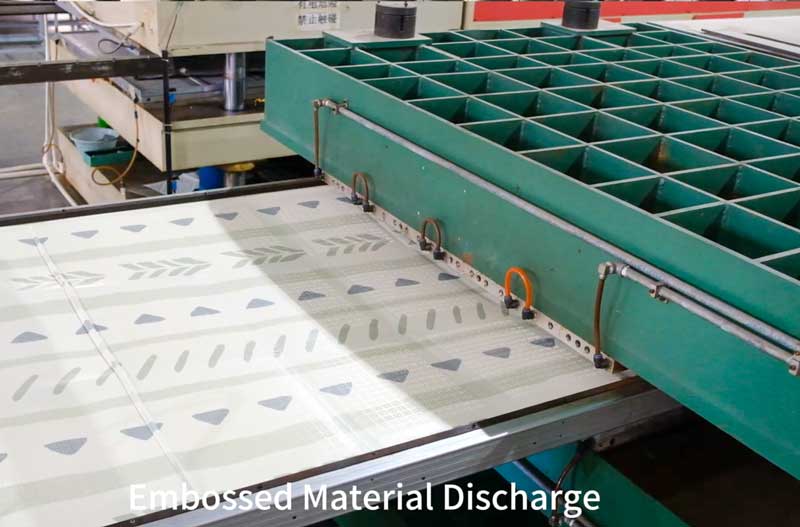

- Core equipment: Standard Servo-Controlled Cutting Machine、Fully Automatic Hydraulic Press for XPE Creasing and Folding Lines
- Key Values:The tolerance is ±1 mm, with smooth, rounded cut edges. High-precision CNC equipment ensures accurate and aligned folds.
TPE Yoga Mats – Press Cutting & Edge Trimming for Smooth

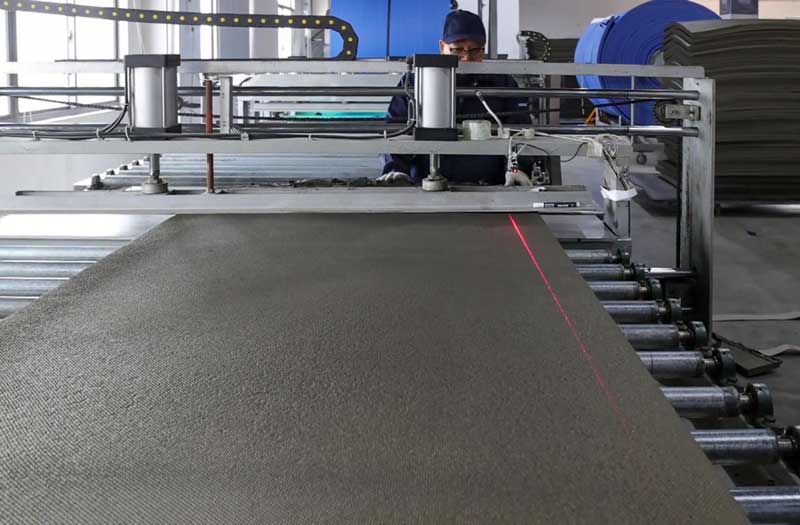

During trimming and cutting, a CNC laser cutting system is used to trim foam sheets and remove excess material, ensuring dimensional consistency. Following the embossing process, a hydraulic die-cutting machine (with a pressure capacity of 50–100 tons and rounded-corner tooling) cuts the material to precise dimensions, enabling full customization to meet specific customer requirements.

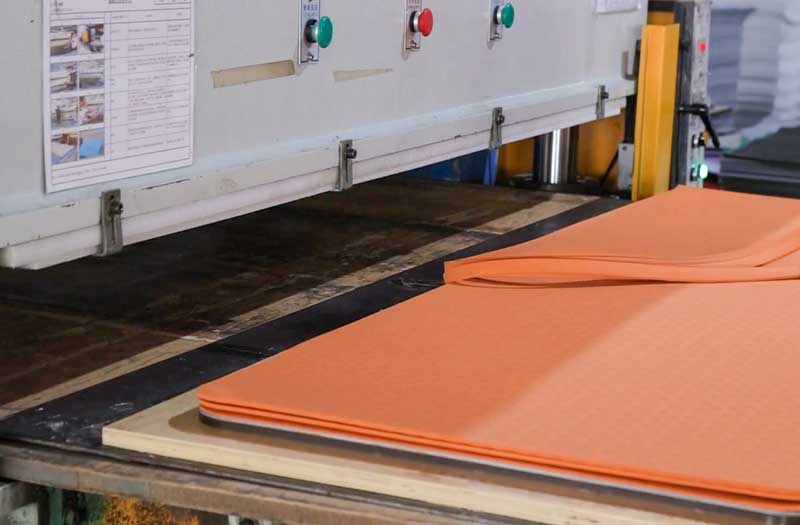

- Core Equipment: CNC Laser Cutting Systems、Automatic Edge Trimming Machines、Hydraulic punching and cutting machine (50–100 ton capacity, with corner-rounding die)
- Key Values: Blanking, corner rounding, and logo embossing are performed in a single step, minimizing processing steps. The edges are smooth and burr-free for direct skin contact, with uniform cutting pressure and ±0.5mm tolerances.
PVC Rolls – Slitting & Cross Cutting for High‑Volume, Continuous Production

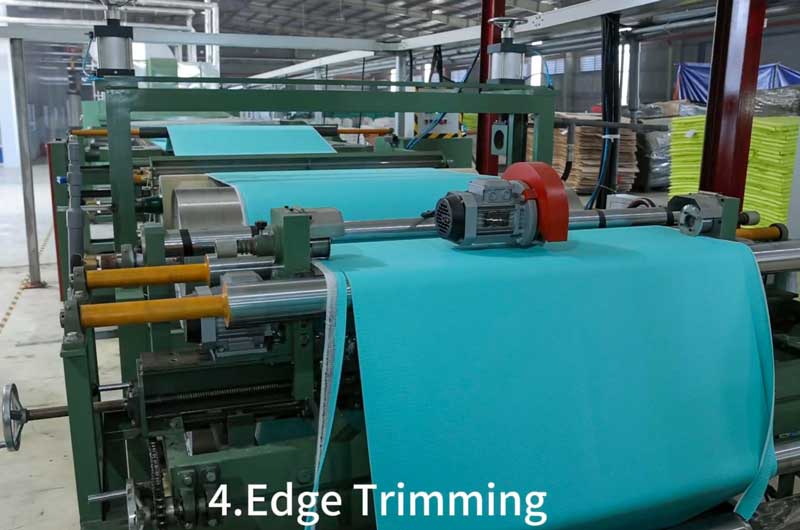

PVC foam rolls are fed from an automated yoga mat production line into a high-precision slitting machine. Circular blades slit the material lengthwise into narrower rolls of the required width while simultaneously trimming the rough edges. These narrow rolls pass through a buffer unit into a fixed-length cross-cutting machine, where they are automatically cut into individual sheets of a set length (e.g., 183 cm for yoga mats). Finally, the sheets are either edge-rounded (using a corner-rounding die) or retain their square corners.

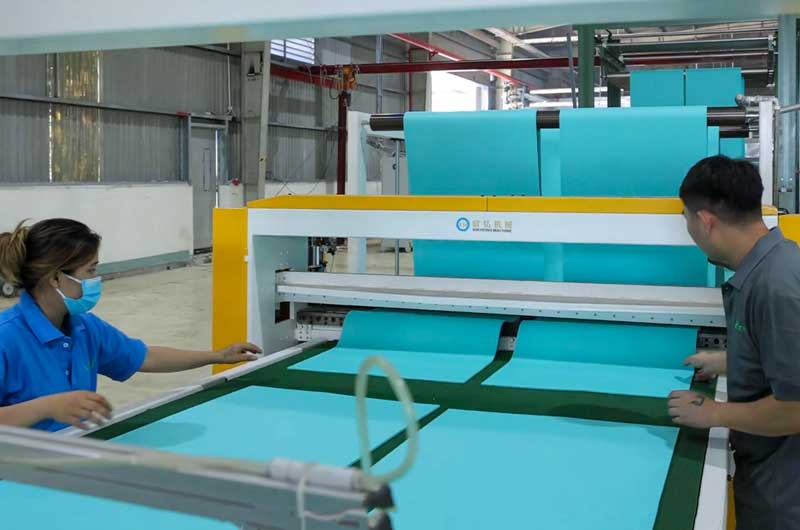

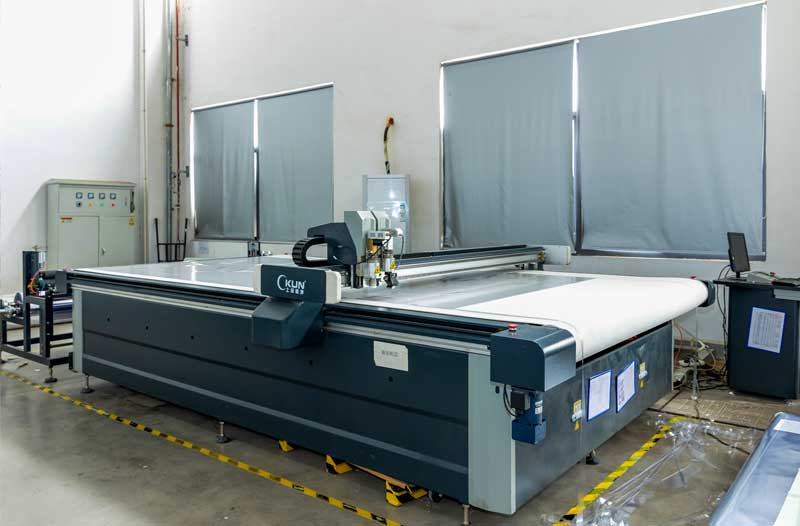

- Core Equipment:: High-precision slitter (adjustable slitting width), fixed-length cross-cutter (servo-driven, ±3mm precision)，Oblique cutting machine
- Key Values:Fully automated continuous production with a daily capacity of 10,000–20,000 pieces; slitting width tolerance of ±1 mm with clean, burr-free edges; flexible length adjustment and rapid product changeover.
Custom Cutting & Shaping – Your Design, Our Precision
Beyond standard rectangles and circles, NEEU offers end‑to‑end customization for foam mat cutting, shaping, and finishing. Whether you need interlocking tiles with unique puzzle teeth, yoga mats with custom corner radii, edge-branded embossing, or complex contour cuts for themed play mats, our tooling workshop and CNC capabilities turn your CAD drawings into production‑ready dies. From low‑volume prototypes (no‑die laser or CNC routing) to high‑volume orders (dedicated steel‑rule dies), we deliver dimensional accuracy of ±0.5mm and clean, burr‑free edges. All while preserving the foam‘s closed‑cell structure, cushioning properties, and safety compliance. Please tell us your design, and we’ll make the cut.
| Customization Type | Description |
|---|---|
Standard Size Cutting |
Any rectangular size; available with rounded or square corners. |
Custom-shape cutting |
Any shape based on CAD drawings (arcs, wavy edges, brand outlines) |
Custom Puzzle Shapes |
Custom interlocking tab shapes (non-standard puzzle tabs) |
Logo Embossing & Cutting |
Debosses the brand logo (without cutting through) while simultaneously die-cutting the shape. |
Cutting after multi-layer lamination |
Cutting of laminated sheets (e.g., EVA + non-woven fabric, XPE + colored film) |
Explore More Production Stages
Want to see how this homogeneous compound becomes a finished foam mat?
Compounding and Mixing
Learn how NEEU's compounding & mixing process ensures batch-to-batch consistency. Automated weighing (+0.1% accuracy), dust-free environment, and digital recycler management for EVA, TPE, PVC & XPE foams.
Surface Treatment & Lamination
Mats receive functional surface treatments: embossing for anti‑slip texture, heat lamination for multi‑layer composites (e.g., EVA+non‑woven, EVA+cork), and coating for stain resistance. This stage adds both performance and aesthetic value.
Foaming Process
The homogeneous compound enters a continuous foaming oven where chemical or physical blowing agents create a uniform closed-cell structure. This step determines the material's density, resilience, and thickness tolerance (+0.3mm) - the core of its cushioning and durability.
Packaging Preparation & Final Inspection
Custom logos, patterns, or alignment guides are applied via UV printing, heat transfer, or silk screen. Printed mats are then 100% visually inspected, cleaned, and packed into private‑label boxes, poly bags, or shrink wrap – ready for shipment.
Why Global Brands Trust NEEU
Behind every NEEU play mat is a vertically integrated manufacturing operation spanning 75,999㎡ square feet across China and Vietnam – equipped with automated foaming lines, dust-free workshops, and 620+ skilled technicians. We hold ISO 9001, BSCI, EN71, ASTM F963, CPSIA, REACH, and Walmart/Target/Disney compliance certifications that matter to European and the United States retailers. Every mat undergoes 100% final inspection for cleanliness, foreign objects, and packaging integrity. From raw material sourcing to batch traceability, NEEU delivers consistency, compliance, and scalability. Want to see our full capabilities?
Frequently Asked Questions About Cutting, Shaping & Finishing
What cutting tolerances can NEEU achieve for different foam materials?
A:
- EVA interlocking mats (die-cutting): ±0.5 mm (interlocking gap ≤0.3 mm)
- XPE children’s play mats (standard servo-controlled cutting machine): ±0.5 mm; laser cutting: ±0.2 mm
- PVC rolls (slitting and cross-cutting): width tolerance ±1 mm, length tolerance ±3 mm
- TPE yoga mats (punch cutting): ±0.5 mm
All tolerances are based on Statistical Process Control (SPC) under mass production conditions; first-article and batch inspection reports are provided.
How long does a die (mold) last for foam mat cutting?
A: Steel jigsaw dies or cutting dies typically have a lifespan of 500,000 to 1,000,000 cuts, depending on foam density and thickness. NEEU regularly inspects the edges for wear and provides maintenance and resharpening services. Laser cutting involves no die wear, though the laser tube has a lifespan of approximately 8,000 to 10,000 operating hours.
How do you prevent sharp edges or burrs on cut foam mats?
A: All cut products undergo edge finishing using a vertical edge trimmer or sander to remove minor burrs. For children’s products, we also use rounding dies or chamfering machines to convert sharp corners into rounded edges and verify safety through sharp-edge testing (EN71-1/ASTM F963).
How do you manage formulation changes and traceability?
A:Die-cutting and punching can process EVA, XPE, and TPE materials with thicknesses ranging from 2 mm to 40 mm. Slitting and cross-cutting are suitable for PVC or XPE rolls with thicknesses of 1-15 mm. Laser cutting is appropriate for foam materials up to 20 mm thick (excessive thickness results in slanted cut edges).
Can you cut and finish multi‑layer composites (e.g., EVA+non‑woven, XPE+printed film)?
A: Yes. We use a synchronous die-cutting process that cuts through both the foam layer and the surface facing in a single operation, resulting in clean edges without delamination. For soft surfaces (such as non-woven fabrics), we recommend laser cutting to fuse the edges and prevent fiber fraying.
How do you maintain dimensional stability during high‑volume cutting?
A:We utilize an automatic feeding system combined with precision mold guidance and perform periodic dimensional spot checks (length, width, and diagonal measurements) every 100–200 pieces. Regarding the die-cutting process, we regularly clear waste material from the molds to prevent accumulation that could compromise closing precision. All critical dimensional data is entered into the MES system to ensure traceability.
Can you cut interlocking puzzle shapes with non‑standard teeth?
A: Yes. We can customize the puzzle interlocking pattern—including the number, height, and width of the tabs, as well as the fit tightness—based on the client’s CAD drawings. The development cycle for custom molds is approximately 15–20 days, with mass production commencing after sample approval.
Will the finishing process affect the chemical safety or durability of the mats?
A: No. We use non-contact cutting technology (such as laser cutting) and mechanical shaping, which require no heat-sensitive chemicals during the finishing phase. This ensures that the material’s structural integrity, elasticity, and safety compliance (REACH/EN71) remain 100% intact from the raw foam stage to the finished product.
